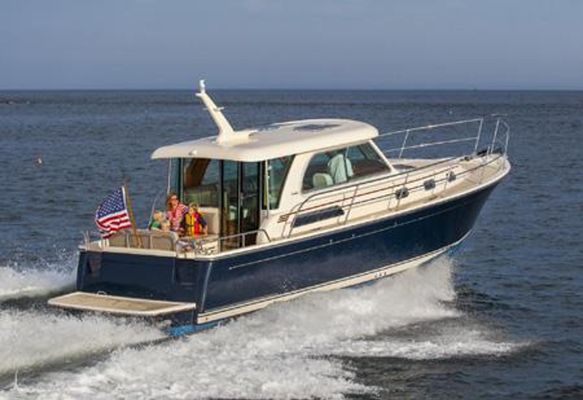

2023 Sabre 38 Salon Express

STANDARD ENGINE/GEN SET SYSTEM

• Twin Volvo Penta D4 300HP engines linked to VP IPS drives
• 3.7l (4) cylinder fresh water-cooled Includes Volvo electronic
• Volvo Active Corrosion Protection system
• 12V alternators each engine.
• Volvo raw water intake strainers
• Engine room blower.
• Engine room vent ducts.
• White gelcoated engine room
• Mylar Foil face foam noise barrier.
• 6kW Koehler Generator

FUEL SYSTEM

• Twin 150 USG rotomolded diesel fuel tanks.
• Racor fuel filters.
• 2” “Diesel” deck fill plate

STEERING AND TRIM SYSTEMS

• Volvo Penta IPS helm
• Lenco Auto Glide trim tab system.

HELM STATION

• Single N Series Stidd helm chair
• Volvo IPS electronic controls.
• Engine Start/Stop control panel.
• Volvo Penta color display (1) with:
• Tachometer w/hour meter
• Engine temperature
• Engine oil pressure
• Transmission oil pressure
• Voltmeter
• Water in fuel warning
• Fuel remaining function
• Fuel consumption function
• Hi water temp and low oil pressure alarm
• Triple windshield wipers with washers.
• Compass
• Switch controls for horn, running lights, anchor light, engine room blower and optional equipment.
• Stazo wood trimmed 16” steering wheel

120VAC ELECTRICAL SYSTEM

• Two 30 A. AC shore power inlets and two 50 ft. cords
• Galvanic Failsafe isolator
• Illuminated main circuit breaker distribution panel
• 120V outlets in each cabin and one in engine room.
• All galley and head receptacles are GFI protected.
• Additional outlets positioned in locations as appropriate
• Xantrex 60amp, 3-bank battery charger
• Reverse cycle heat/ air conditioning in (2) zones.

12VDC ELECTRICAL DISTRIBUTION SYSTEM

• Two dedicated engine starting batteries.
• Two 4D 210 Amp hour deep cycle ship's service batteries.
• Battery Management panel including Emergency crossover switch.
• Remote Control Ships Power switch
• Remote Control Starting Battery switch
• Illuminated main circuit breaker distribution panel w/battery voltage gauge
• Lighting:
• LED reading lights
• LED lights in the overhead
• LED strip lighting in appropriate locations
• LED Engine room lighting
• Cockpit courtesy lights w/remote switch at transom
• UL Listed Tinned wire throughout.

HULL COMPOSITE

• “Vee” hull design with 24 degree deadrise amidships and 17 degrees at transom.
• VIP Resin Infused laminate with ISO NPG white gelcoat and blended vinylester back-up resin.
• Knitted Biaxial Structural E-Glass Reinforcements
• SAN Corecell foam core in hull bottom and topsides.
• Foam/plywood cored fiberglass stringer system.
• Swim platform with under mounted telescoping ladder.
• Hull side rubbing strakes.
• PVC rub rail with stainless steel cap.
• Painted (Urethane) Double Boot Stripe
• Gold Cove Stripe

DECK AND HARDTOP COMPOSITE

• VIP resin infused, knitted Biaxial Structural E-Glass
• Reinforcements with balsa coring.
• Molded in anti-skid deck surfaces.
• Windows recessed into hard top
• Port and starboard transom gates
• Aft seating slides to expand cockpit dimension
• Stainless steel anchor bowsprit roller system
• Anchor lockers (2) with slam latches
• (1) Large Aft hinged lazzarette locker hatch with gas struts
• and (2) 3”dia compression latches for engine room access
• Electronics pod at the helm station

DECK HARDWARE

• 1 1/4" Diameter type 316 stainless steel perimeter rail system
• (6) 12” Stainless Steel Cleats (2 fwd, 4 mid ship spring
• (1) 10” Stainless Steel Cleat to starboard of windlass as anchor rode tie off.
• Windlass with combination rope/chain gypsy
• Single anchor roller sized for 35# CQR or Delta
• Flagpole holder and flag staff.
• Burgee staff on pulpit
• Low Profile polished hatches w/screens (2) #44 on foredeck,
• (2) #10 port and starboard.
• Custom stainless steel opening ports.
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion
• Horn cleats in aft transom corners
• Teak cap rails are optional

HELM DECK

• Stidd helm N Series helm seat
• Wood in helm area is cherry
• Two overhead pilot hatches with shades/screens
• Bi-fold stainless steel companionway door with drop down window

MASTER / FORWARD STATEROOM

• Spacious Island Berth layout with 5" mattress. ¾” laminated trim on berth top.
• Cherry hull ceilings.
• Drawers under bed. A/C return grills under drawers
• Drawers in bureau w/locker w/shelf above and single louvered door.
• Upper enclosed shelves with storage behind. Locker facewith 2 doors. Each door to access partitioned space with shelves in the aft two compartments.
• Large Hanging Locker to starboard, cedar lined with shelfand hangar pole. Open shelf above. Louvered door.
• Teak and holly sole with 2 coats of sealer.
• Soft headliner panels.
• Passageway door between galley and forward cabin.
• Divider between galley and stateroom with surface mounted
• 26” LED Television on manual lift.

HEAD

• Vessel sink with faucet.
• Tempered Glass Shower stall with seat.
• Hot and cold pressure water.
• Electric shower sump pump.
• Storage locker.
• Solid Surface Material countertop with bull nose
• Towel bars.
• Wood trimmed mirror over sink
• Ventilation blower.

SALON

• Elevated "U" settee to port with Hi-gloss table with Storage under.
• Mates L-shaped settee forward, open to galley with stainless steel hand rail.
• Cabinet to starboard with storage and LED TV on manual lift.
• Teak and holly sole w/ sealer.
• Sound deadening headliner panels.
• Optional settee and table that converts to berth.

GALLEY

• Solid Surface galley counter.
• Stainless steel sink with faucet.
• Drawers and storage lockers below counter.
• Storage cabinets outboard and above aft counter
• Lockers above stove.
• Two burner electric cook top
• Compact stainless steel microwave oven.
• Stainless steel drawer style refrigerator/freezer 12DC/120VAC

LOWER LOUNGE

• L-shaped settee with pull out converts to double berth.
• Bookshelf outboard of Settee.
• Extra large drawer handy to Galley for large items.
• Optional large 36” x 10” Hull Side fixed portlight.
• Optional Television/DVD combo for lower lounge.

FRESH WATER SYSTEM

• Water capacity 100 gals.
• 11 gal. Stainless steel hot water heater 110V and engine heat exchanger
• Hot and cold water pressure system 12V.

DÉCOR

• Varnished cherry interior finish
• Screens on opening ports and hatches
• Optional fabric and drapery selections
• Laminated wood trims on counters and shelves
• Dovetailed maple drawer boxes

WASTE DISPOSAL

• Polyethylene holding tank with 40 gallon capacity
• Jabsco Quiet Flush fresh water MSD
• Diaphragm Waste pump on holding tank.

SAFETY

• Fire extinguishers, (4) at 2 1/2 lbs.
• Carbon Monoxide Detectors.
• Marelon sea valves on all below waterline fittings.
• Bonding system to safeguard against galvanic corrosion.
• Automatic fire extinguishing discharge system with override.
• Automatic 12V electric bilge pumps (3).
• High Water Alarms (3) for bilge.
